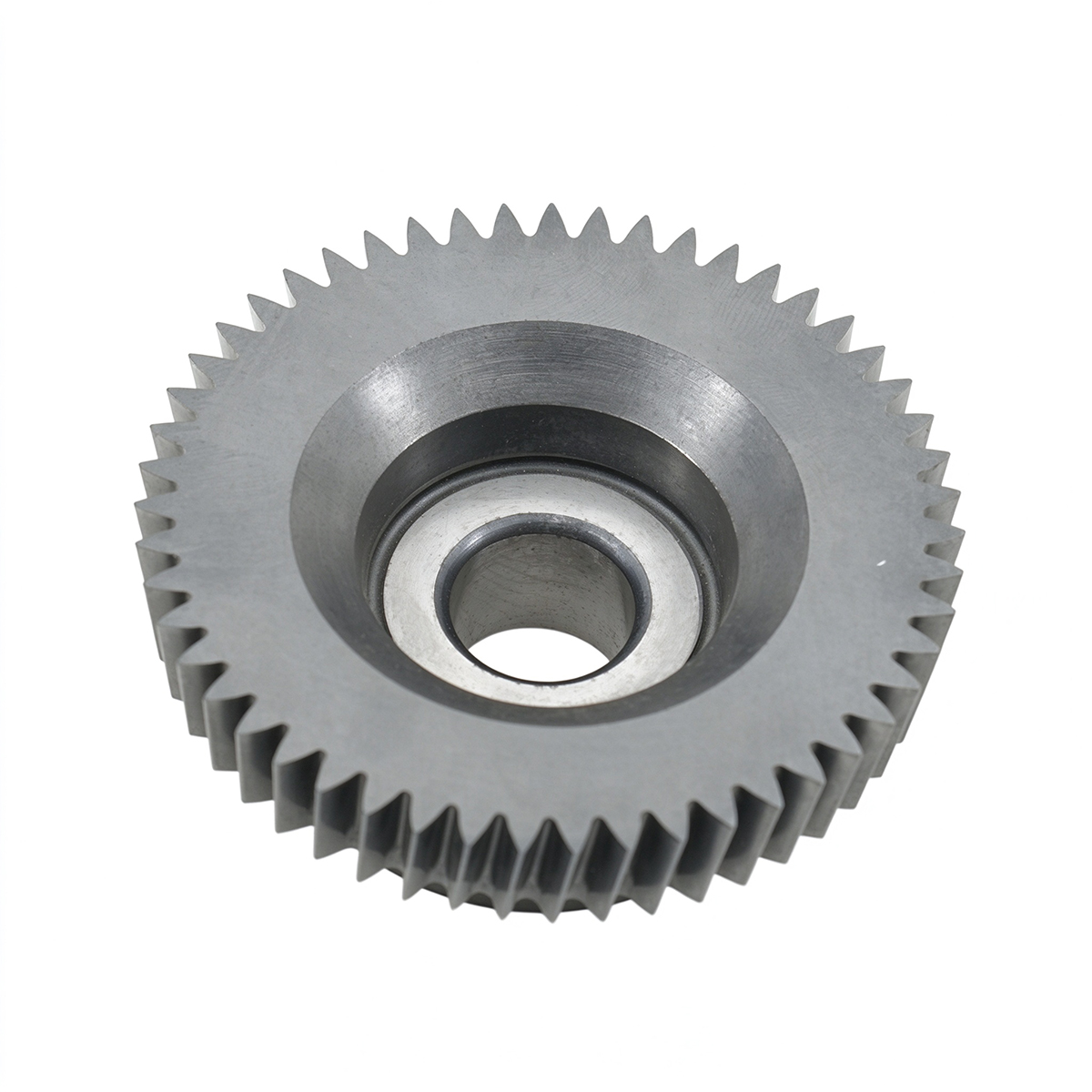

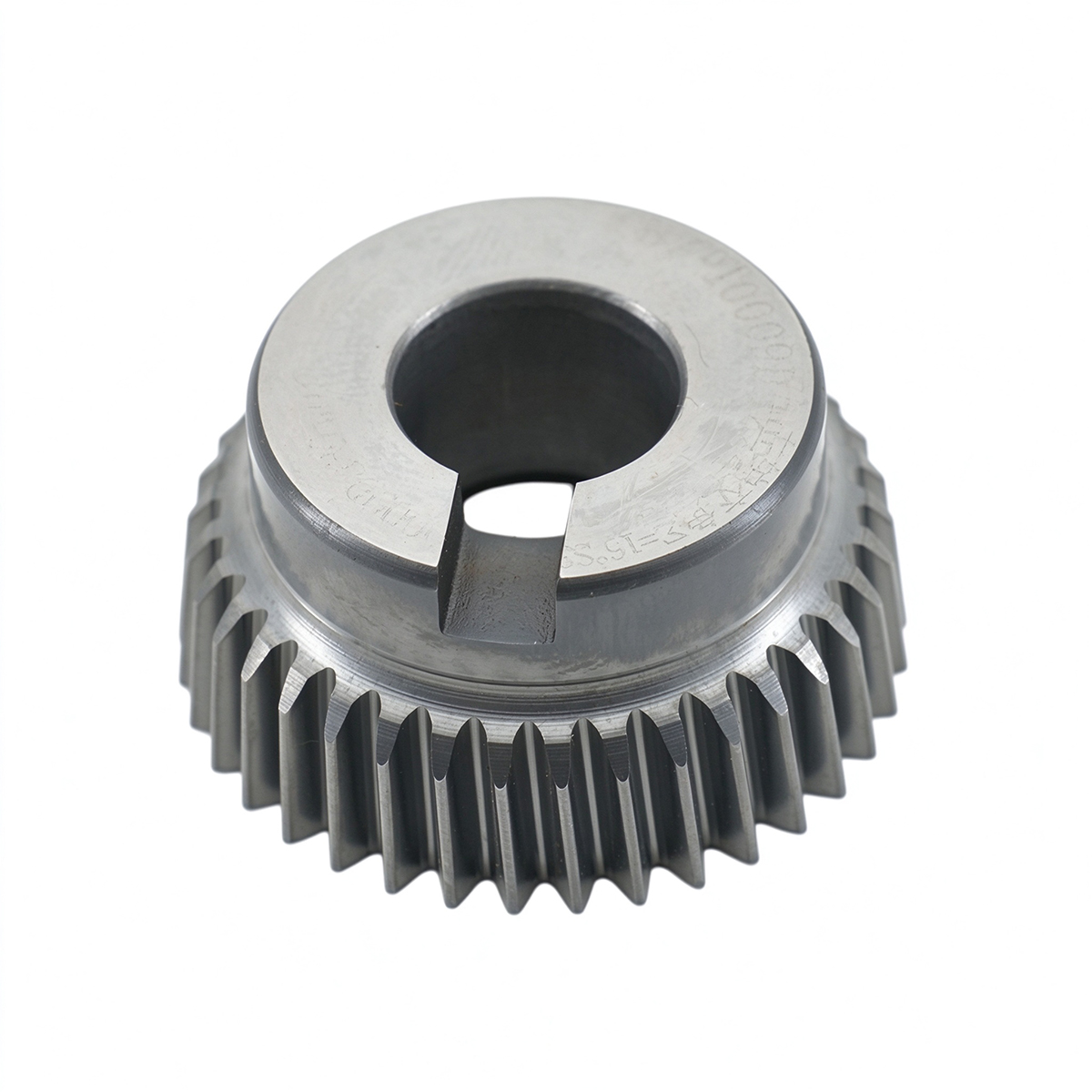

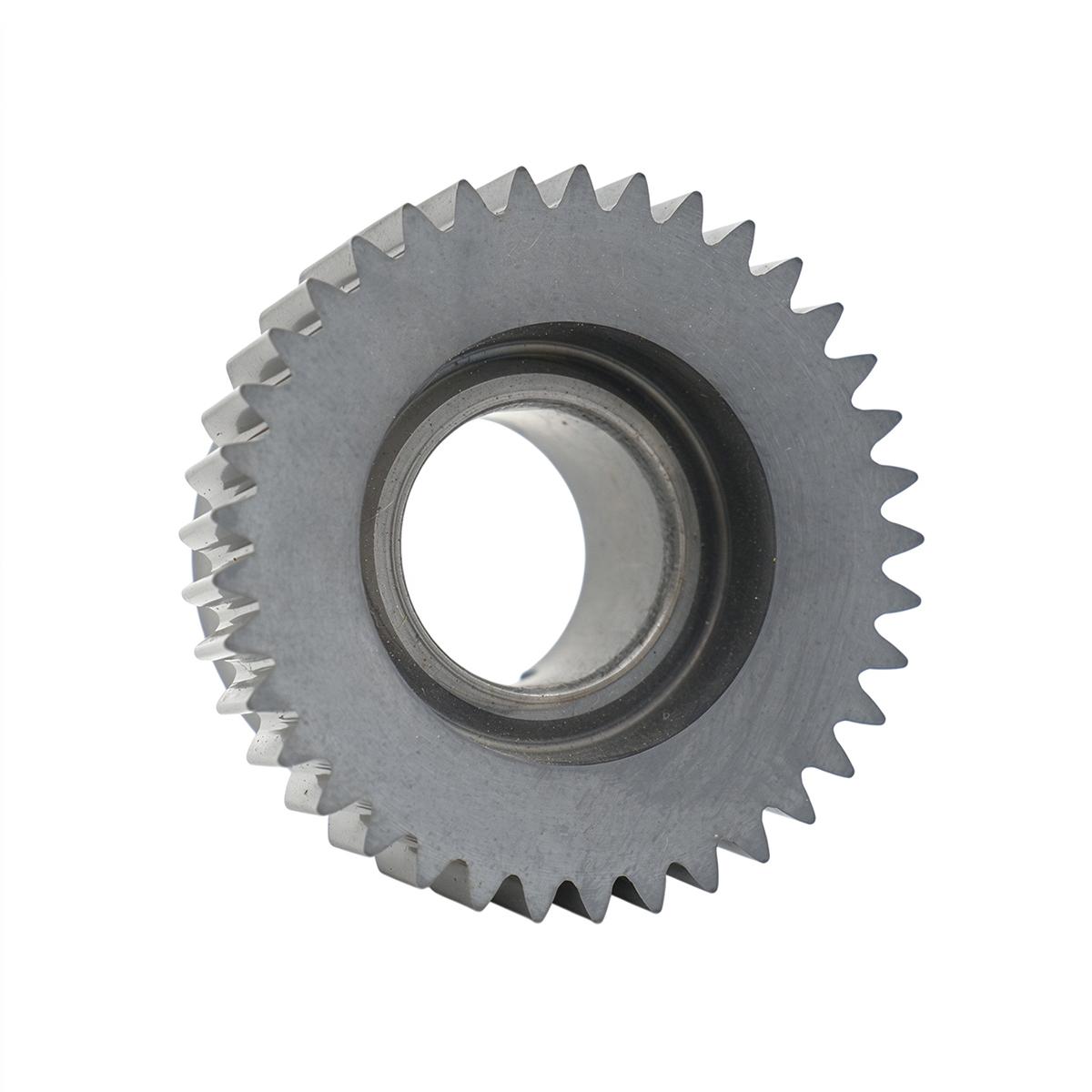

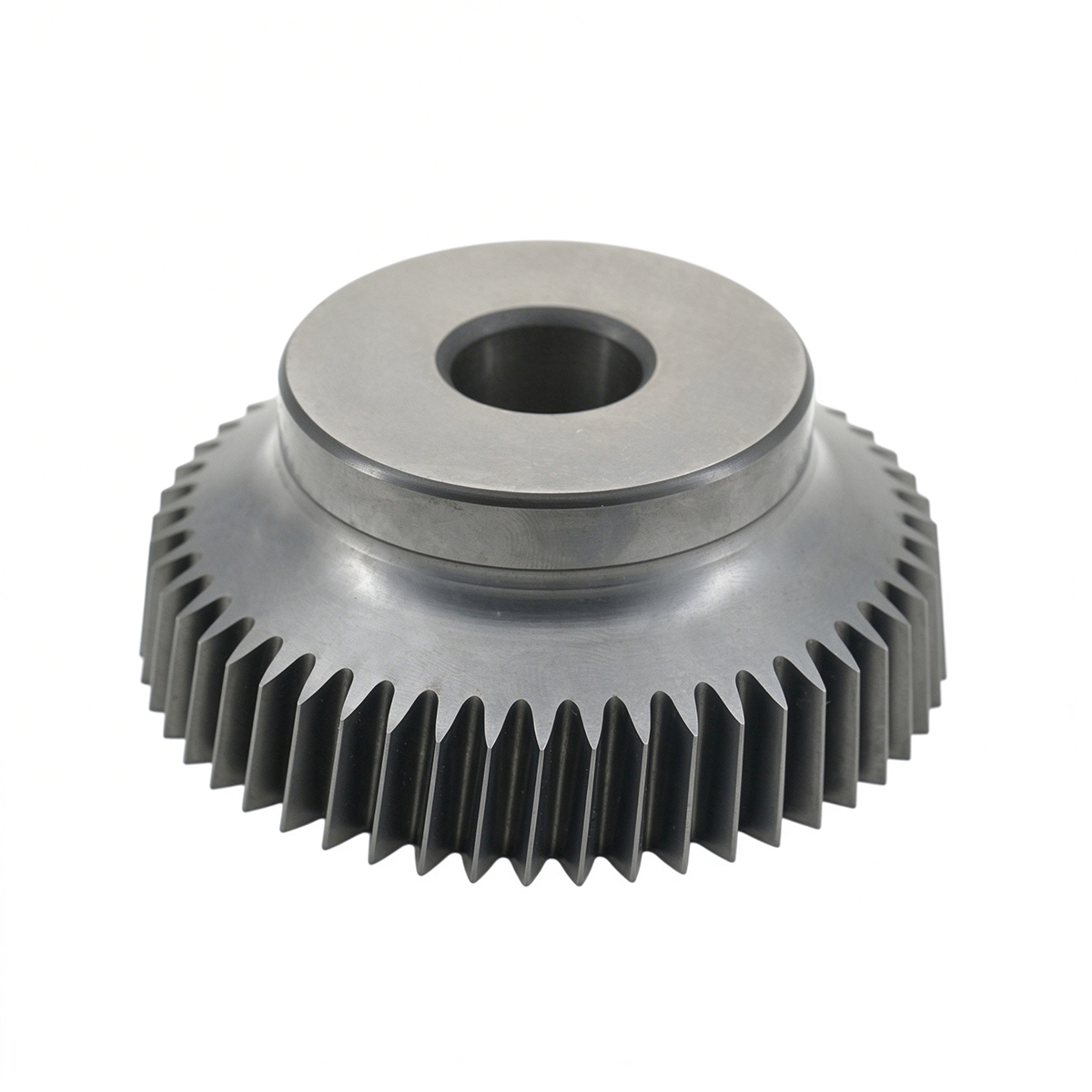

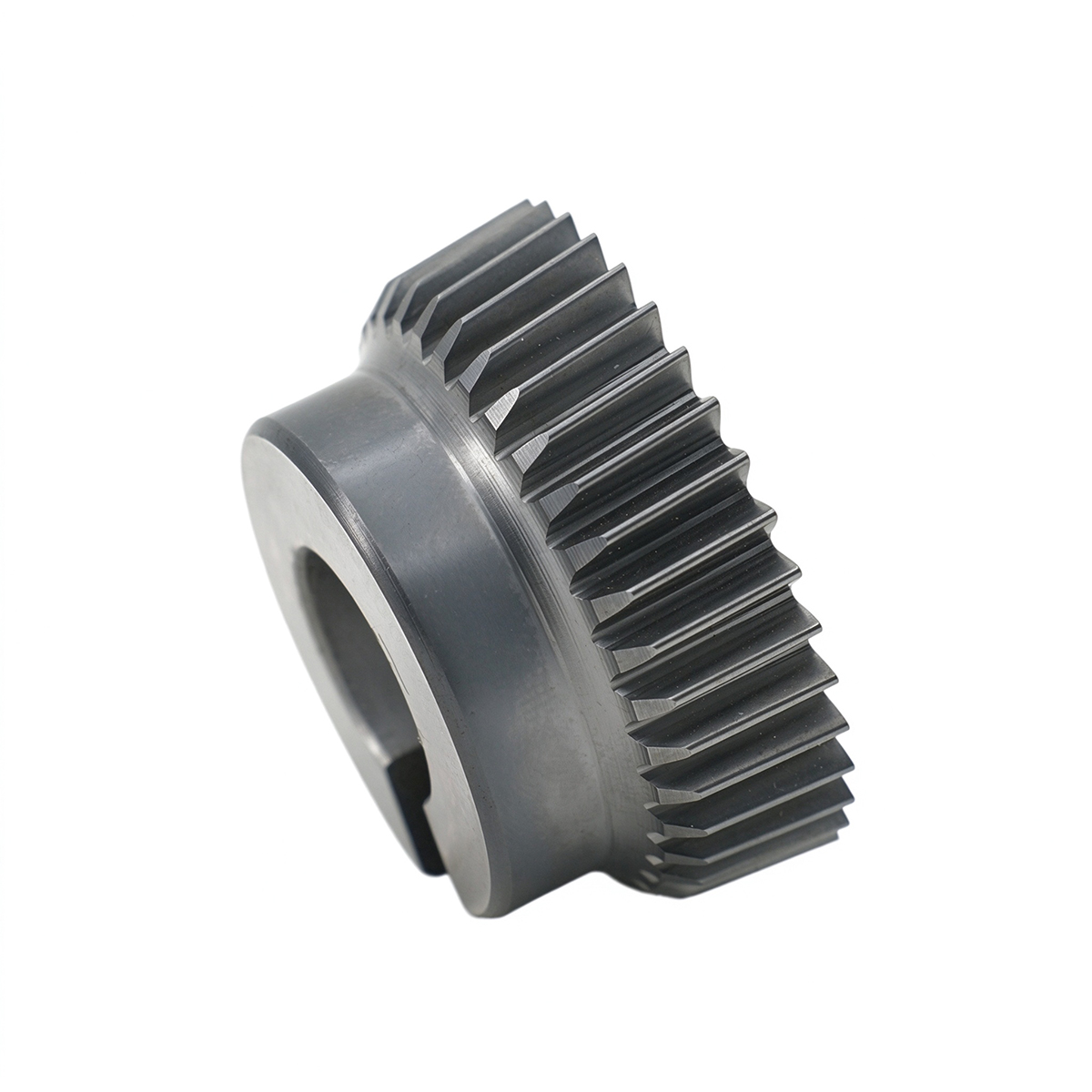

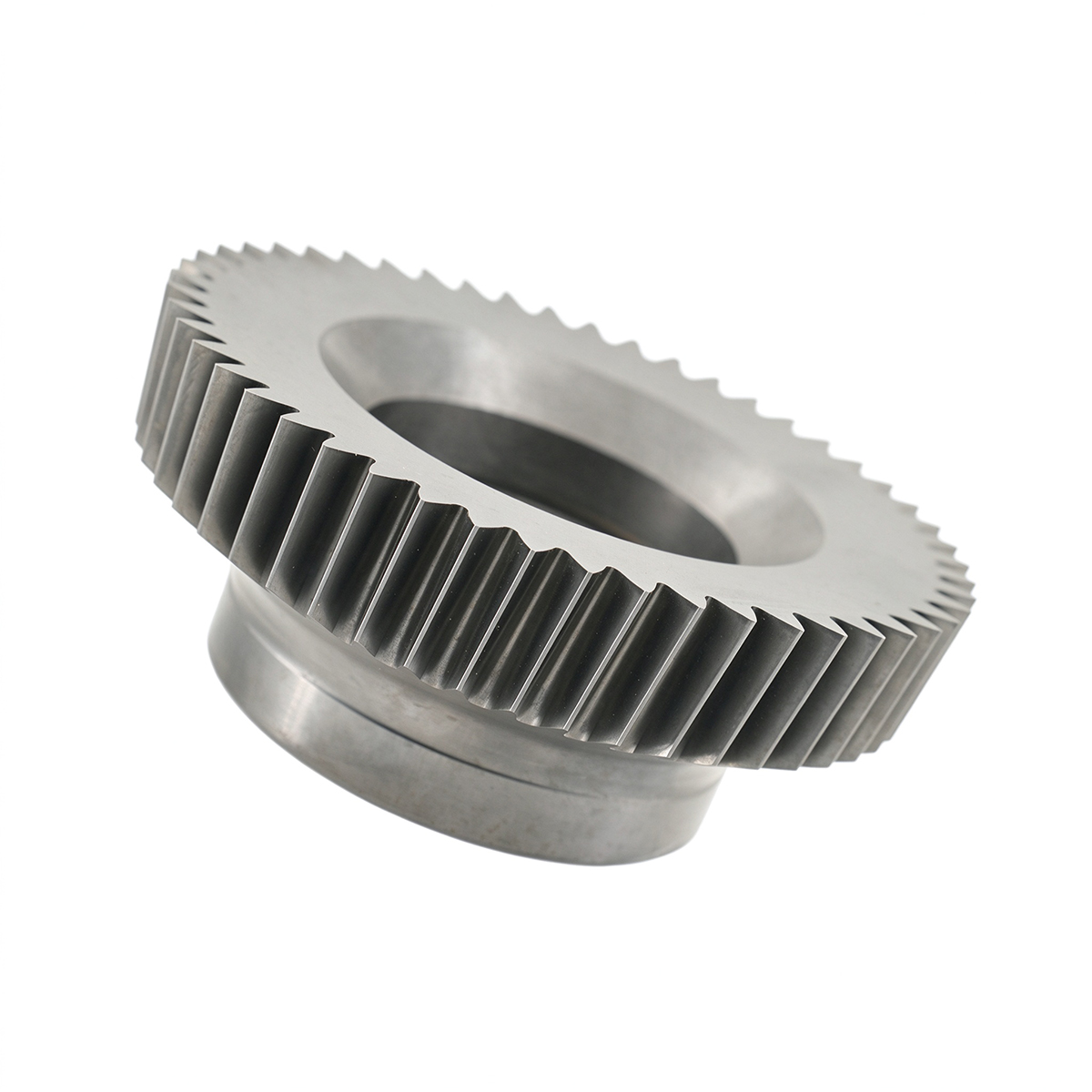

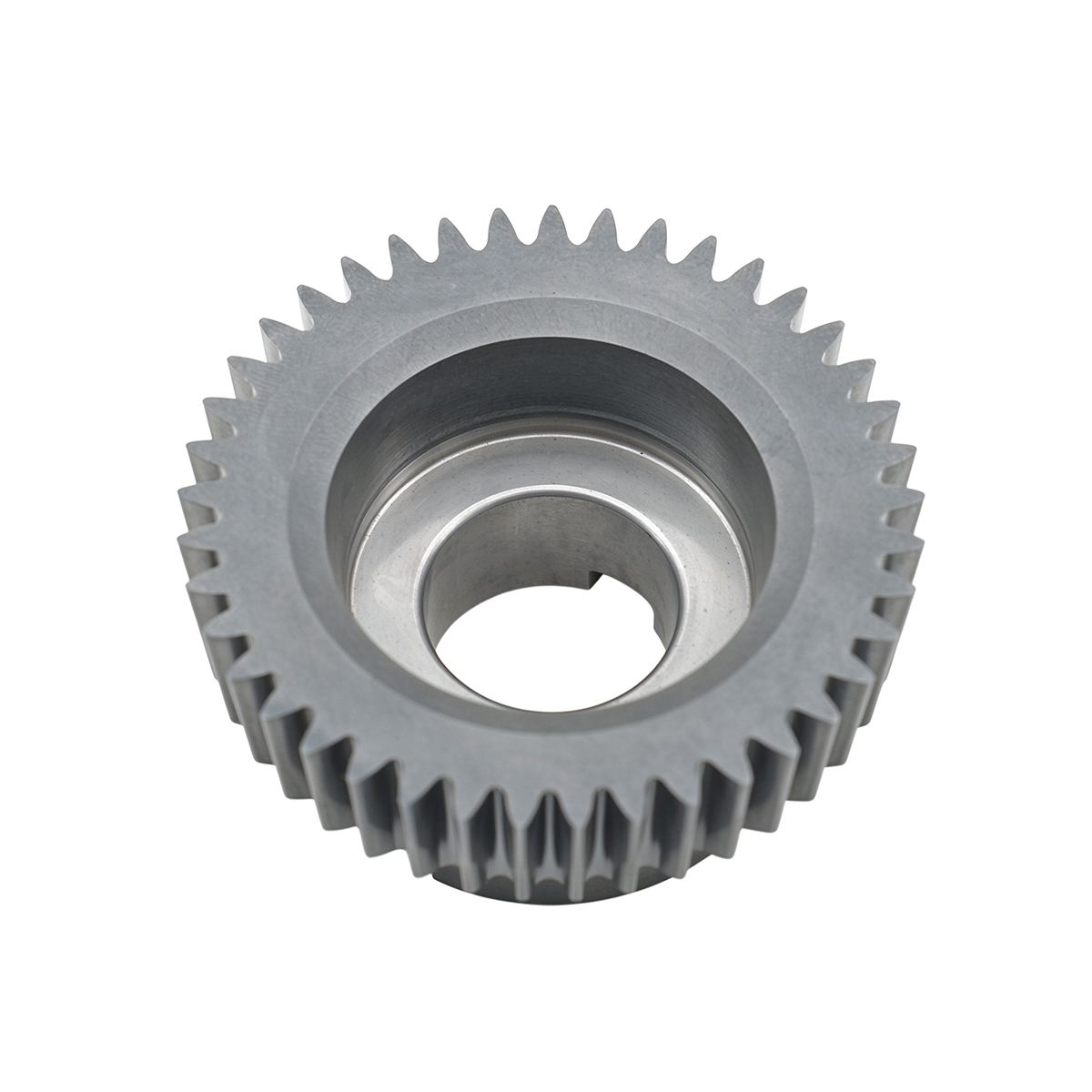

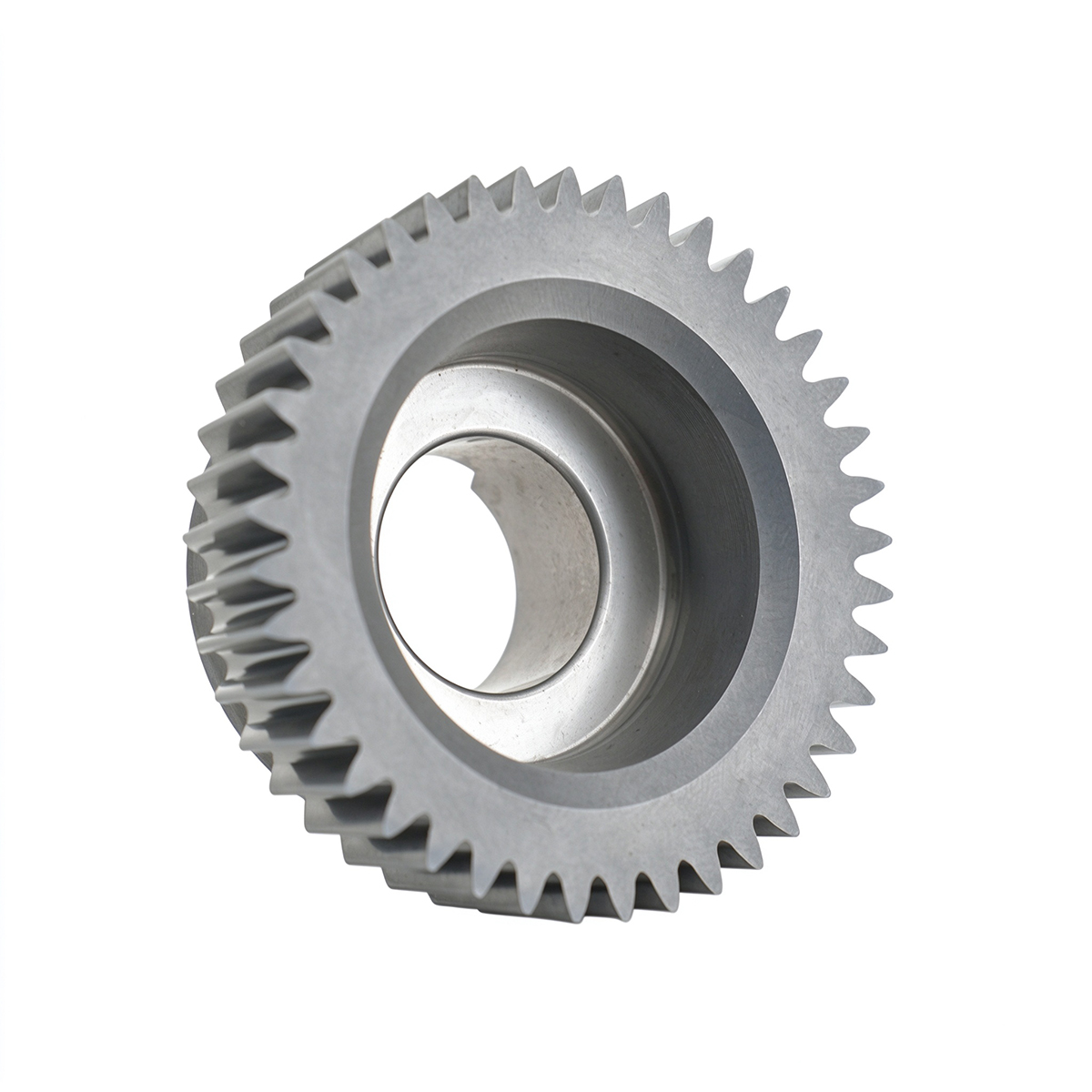

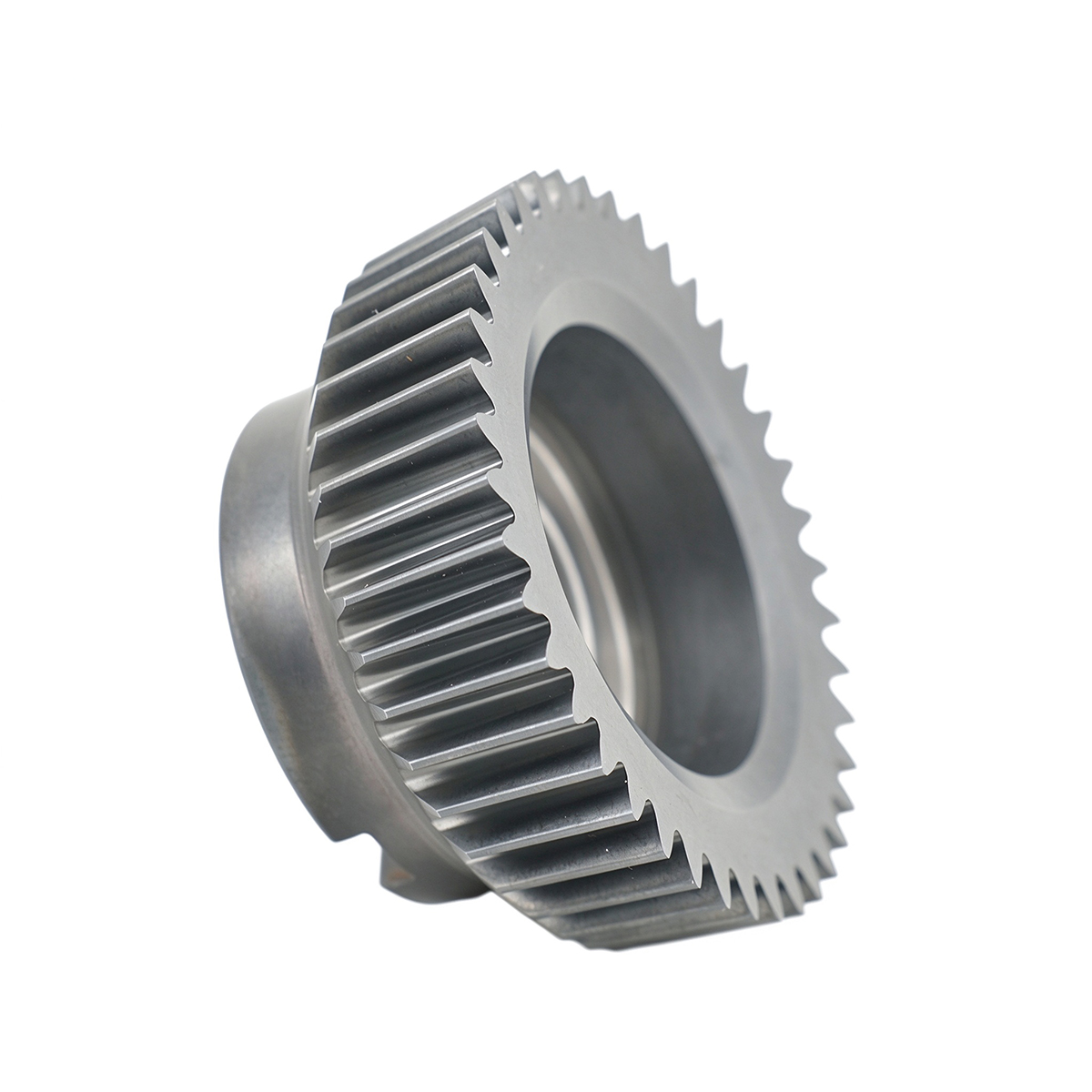

Dish-type spur gear shaper cutter

Product Name: Bowl-Type Spur Gear Shaper Cutter

Applications and Advantages: Designed for machining external and internal spur gears, this tool is specifically engineered to overcome interference issues caused by features such as flanges, shoulders, or stepped hubs on the workpiece. It is ideal for machining cluster gears (including stepped/tapered designs), pin-gear housings for RV reducers, and transmission spur gears. It is widely used in the manufacturing of construction machinery, gear reducers, and automotive components. Featuring a solid, bowl-shaped (shell-type) structure, the cutter offers excellent resistance to bending and vibration, ensuring high stability during the cutting process. It is well-suited for applications requiring significant stock removal and provides high durability for mass production. Capable of achieving accuracy grades of AA or A, it ensures consistent tooth profile and lead precision, making it perfect for the high-volume production of high-precision transmission spur gears. It can machine both external and internal spur gears, and is particularly well-suited for internal gears that feature shoulders.

Other: This product is available for OEM/ODM customization to meet specific, non-standard requirements.
