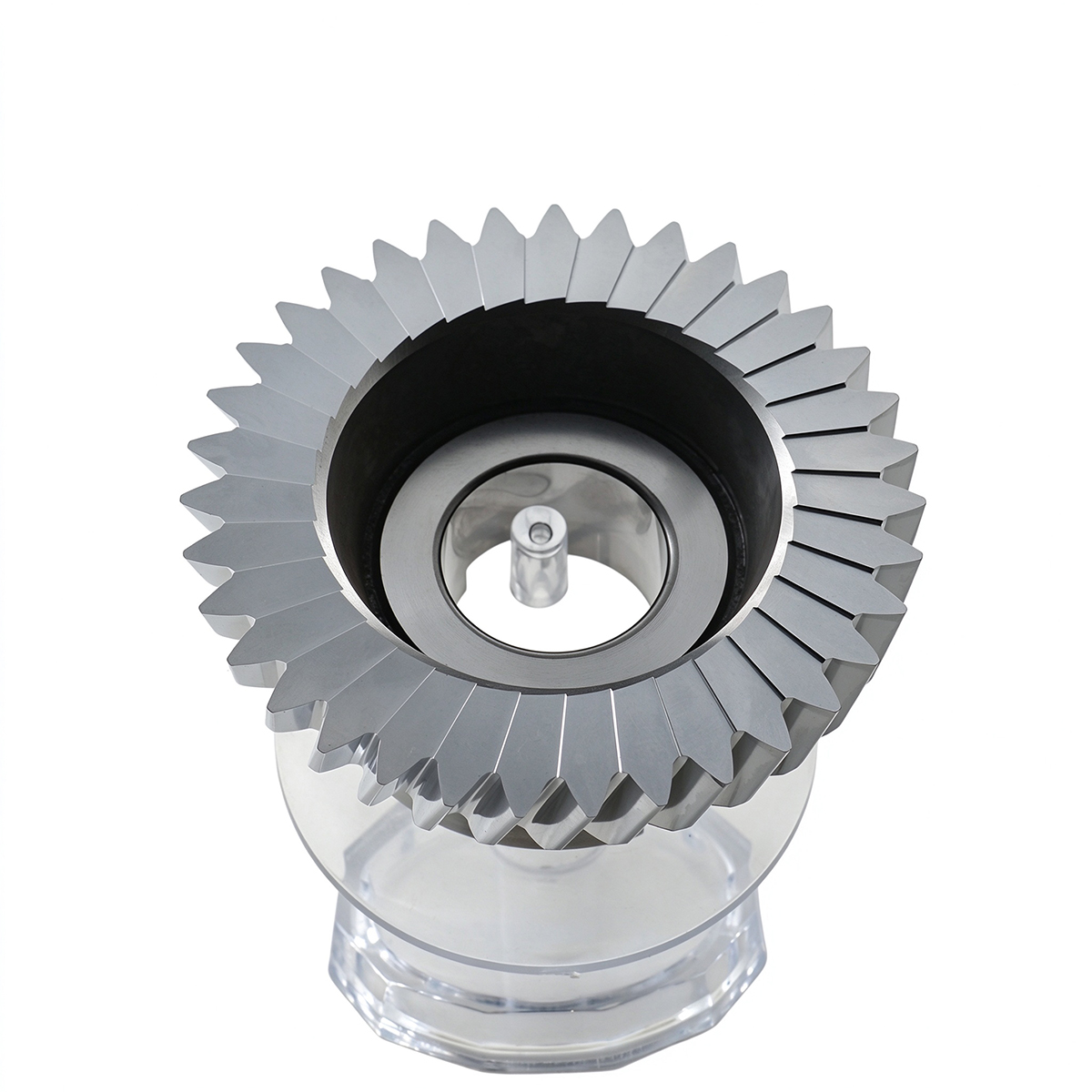

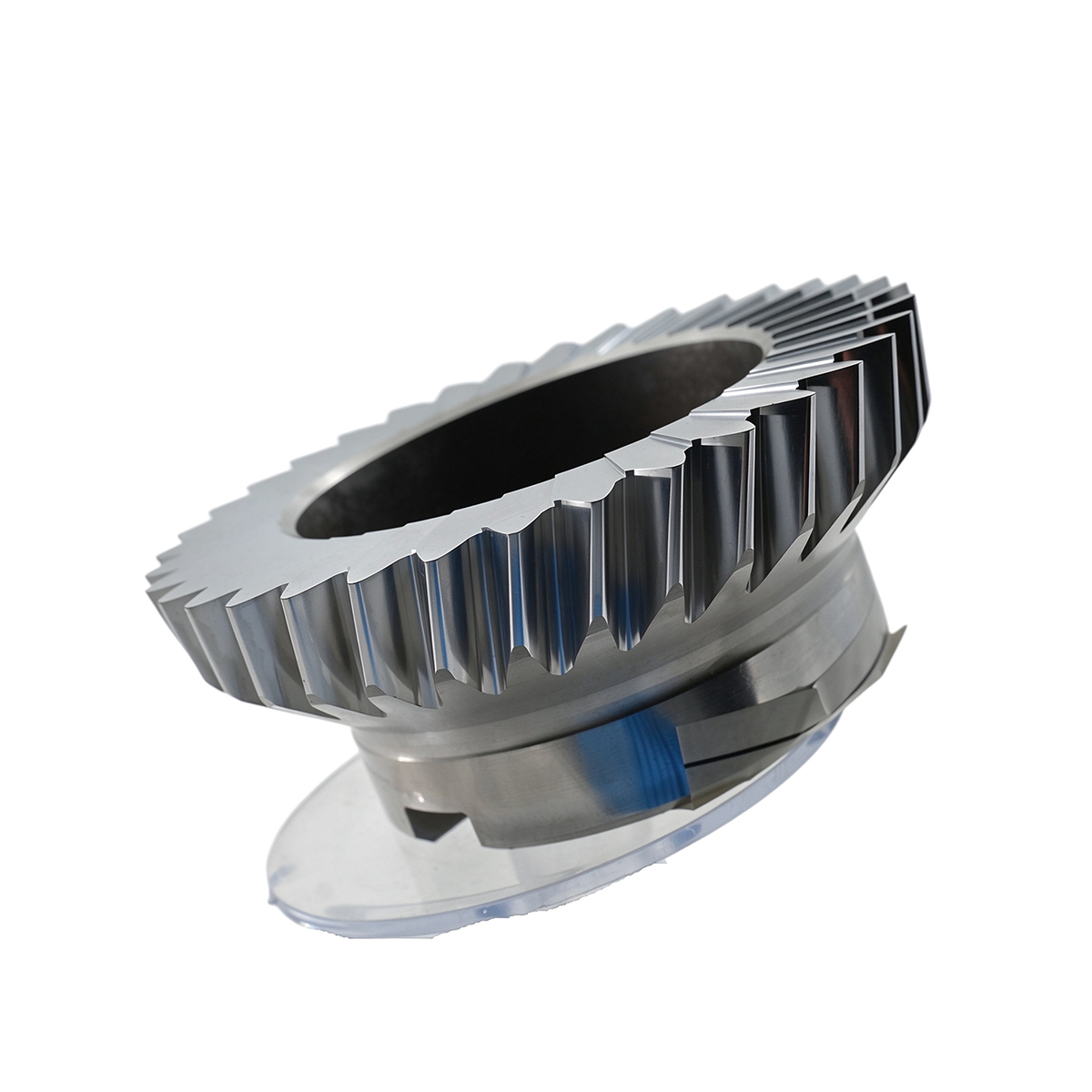

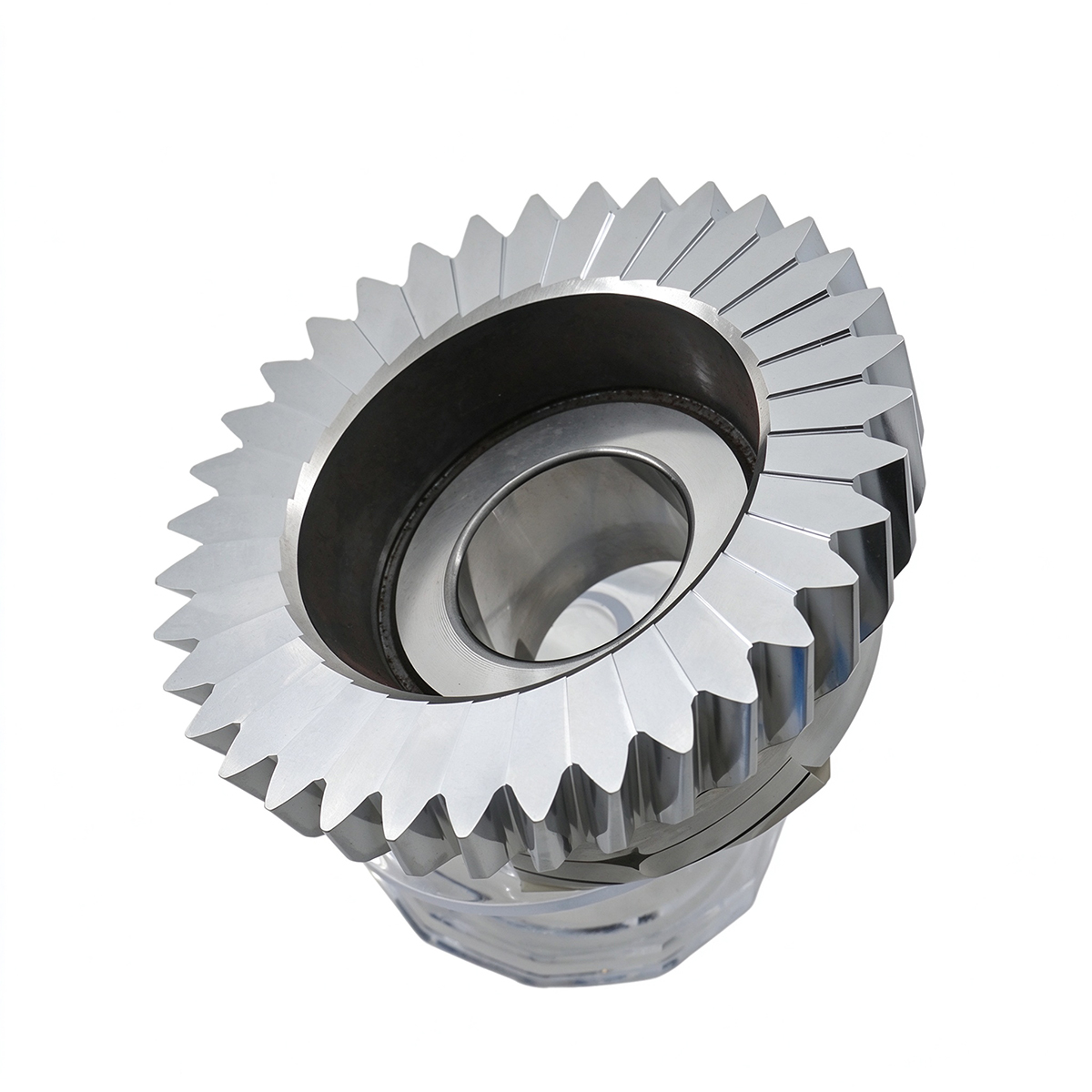

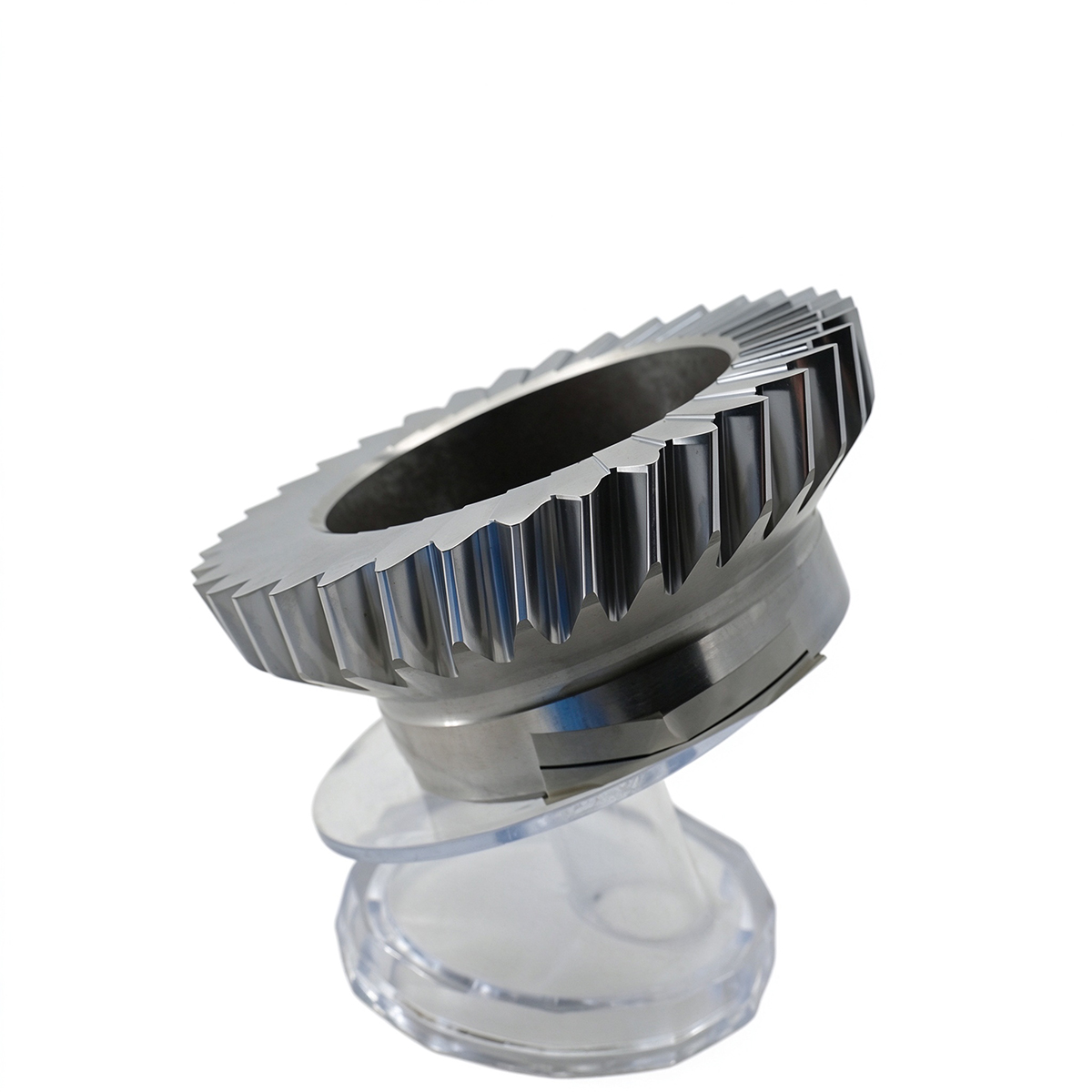

Precision Dish Helical Gear Shaper

Our Precision Dish Helical Gear Shaper is a high-performance tool for pinion cutter gear shaping. As reliable Gear Shaper Cutters and shaper cutters, it delivers outstanding precision for helical gear machining. We also provide custom shaper cutters to match your unique processing demands. Our company also has products such as Milling Cutters, Hole-making Tools, Gear Cutting Tools (Specialized Gear-cutting Tools), Special Alloys, Machine Tool And CMM Probe Systems, etc. We are a specialized enterprise focusing on the R&D, production and sales of high-end CNC CUTTING TOOLS and special materials, with our business network covering the globe, and customized products are available.

Product Name: Bowl-Shaped Helical Gear Shaper Cutter

Applications and Advantages: Designed for machining helical cylindrical gears—specifically internal helical gears, external helical gears with shoulders or flanges, pin-gear housings for RV reducers, transmission gears, and gears for construction machinery. Its bowl-shaped, hollow, concave design allows it to clear workpiece flanges, hubs, and steps, enabling machining very close to the workpiece shoulder. The helical cutting edge ensures a gradual, progressive entry into the material, resulting in minimal cutting impact and superior tooth surface finish. This tool is ideal for producing high-precision, low-noise transmission gears; it can handle significant machining allowances, offers excellent stability in mass production, and achieves AA/A-grade precision—meeting the requirements for the high-volume production of precision gears used in reducers and automotive applications.

Other: This product is available for OEM/ODM custom, non-standard specifications.
